Portable Survey Instrument for Evaluating Resistive Properties of Static Control Products

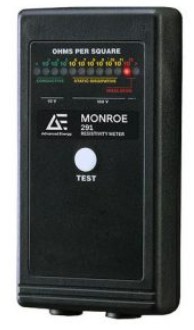

Monroe/Trek 291 Portable Resistivity Meter
Advanced Energy’s Monroe 291 resistivity meter offers solid performance at an affordable cost. It’s intuitive, pocket-sized, and uses a twelve LED color-coded display to accurately and quickly show measured decade values.
Survey tool
10 and 100 V test voltages
Portability and rugged construction ideal manufacturing environments
Overview:
The MonroeTM 291 uses parallel metal contact rails and jacks for connections to external electrodes or ground to measure both resistivity and resistance-to-ground. The instrument is easy-to-use, pocket-sized, and uses a twelve LED color-coded display to accurately and quickly show measured decade values.
To measure the surface resistivity of a flat sample, place the instrument on the material with the rails contacting the material and press the test button. For surface-to-ground or point-to-point measurements, make connections to one or both of the banana jacks on the end of the instrument. When a banana plug is inserted, the corresponding contact rail is disconnected.
Benefits:
Measure both resistivity and resistance-to-ground
Use the parallel metal contact rails and jacks for connections to external electrodes
Operate within range of 10^3 to 10^12
Features:
Twelve LED color-coded display for fast, accurate measurements
Easy-to-use single button measurements
Portable, pocket-sized convenience
Resistance Measurement Range:
103 to 1013 with LEDs for under-range and over-range
Measurement Accuracy:
±1/2 decade
Operational Conditions:
Temperature: 0 to 400C
Humidity: 10% to 75% RH
Please call us for pricing information or any application questions you may have.
