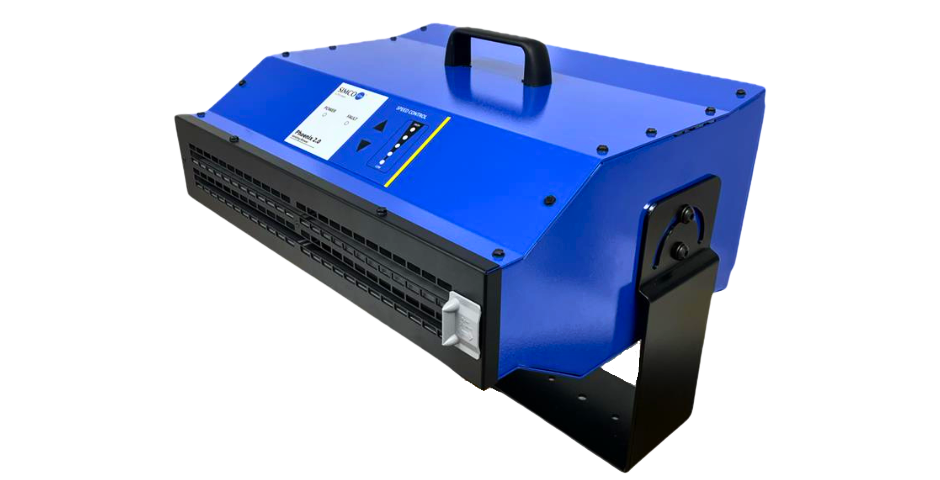

Simco-ION Phoenix 2.0 Extended Range Ionizing Blower

Simco-Ion’s Phoenix 2.0 Ionizing Blower is a highly reliable, extended-range ionizing air blower designed for static elimination in many industrial applications. It is aerodynamically designed to efficiently cover an extended area with automatically balanced ionization for rapid static neutralization.

Features and Benefits

• Built-in brush for easy cleaning
• ~360-degree rotation tilt bracket for maximum mounting versatility
• Variable fan speed control
• Integrated Standby mode
• Portable floor stand and framing system adapter kits available
• Remote On/Off and alarm output
• Universal power input

Line Voltage	100-240 VAC, 50/60 Hz
Current Draw	Max 100 VAC; 2.0A; 120 VAC; 1.5A; 230 VAC; 1.0A (fan speed high)
Balance	±50V
Line Input Connector	IEC320
Fuse	3.15A time delay 5×20 mm (2 required)
User Interface	5-Position Pluggable Terminal Block
Operating Environment	32-100°F [0-38°C]; 70% RH max, non-condensing (no dewing) permissible
Blower Output	230 CFM [6.4 m3/min] to 360 CFM [10.2 m3/min] (adjustable)
Air Filter	80 sq in [516 sq cm] polyurethane foam 20 PPI
Air Speed	1350 FPM @ 1 ft [6.86 m/s @ 0.3m]; 1010 FPM @ 2 ft [5.13 m/s @ 0.6m]; 840 FPM @ 3 ft [4.27 m/s @ 0.9m]; 730 FPM @ 4 ft [3.71 m/s @ 1.2m](fan speed high measured at centerline)
Noise Level	62 dB @ 2 ft [0.6 m]; fan speed high
Discharge Time (typical)	0.5 sec @ 1 ft [0.3m] 1.0 sec @ 2 ft [0.6m] 1.5 sec @ 3 ft [0.9m] 2.2 sec @ 4 ft [1.2m] 3.2 sec @ 5 ft [1.5m] 4.5 sec @ 6 ft [1.8m] 6.6 sec @ 8 ft [2.4m] 9.2 sec @ 10 ft [3.0m] (fan speed high measured at centerline; 1000V to 100V)
Enclosure	Aluminum, blue epoxy powder coated
Dimension	13.00”L x 16.25”W x 7.46”H [330 x 413 x 190 mm]
Weight	16.00 lb [7.3 kg]
Certification	CE, RoHS, ETL (pending)

• 1″ Diameter Post Mounting Kit

  5052150

• PCB 5-Position Connector (for remote operations)

  5052148

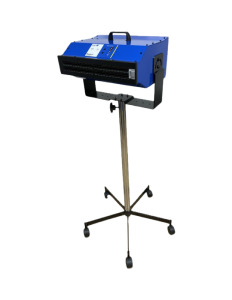

• Portable Floor Stand

  5052148
