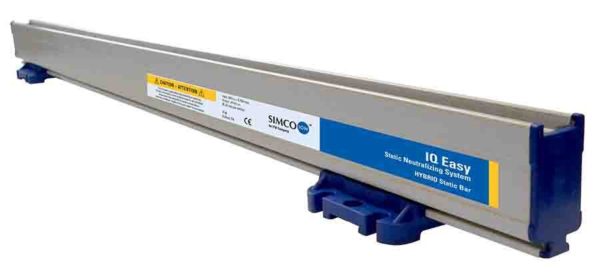

IQ Easy Static Neutralizing Bar
The rugged IQ Easy Static Neutralizing Bar has an integrated high voltage power supply and requires only a low voltage input of 24V DC, allowing for a safer, cleaner install. The IQ Easy bar is IP-66 rated for durability and easy cleaning. It is available in two configurations
- Speed – Ideal for most applications including high speed requirements. Has a working distance of 2″-9″
- Hybrid – Recommended for farther distances, accommodating mounting up to 18″ away from the target
There are two status LEDs on the bar end: indicated Power (green) or bar Overload (red). Universal mounting brackets are supplied for various mounting options.
Features and Benefits
- 24 VDC low voltage input from your machine or Adapter Kit
- 2 LED status indicators
- IP-66 rated against particulate and splash
- Designed for rugged industrial use and easy cleaning
- Shockless long-life emitter points
- IQ Power System compatible for remote monitoring intelligence
- Air Assist bar option
Specifications
| Specifications: | Hybrid | Speed |
| Working distance | Max. 18″ (455 mm) | Max. 9″ (225 mm) |
| Housing material | Fiberglass reinforced extrusion | |
| Ionization point | Tungsten | |
| Cable | Low voltage cable | |
| Connector | Standard M12 | |
| Weight | 0.1 lb/ in (1.8 g/ mm) | |
| Temperature range | 0°-131°F (0-55°C) | |
| Approval/Protection classification | CE, IP-66, ETL | |
| Suitable power supply | 24V DC voltage input | |
