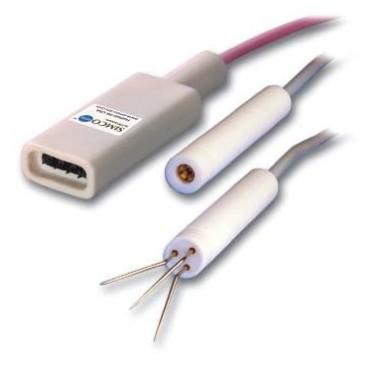

Simco-ION Pinner Charging Applicators

Simco-ION Pinner Charging Applicators

Arcing can cause a multitude of problems such as EMI interference, shutdown of production lines and personnel injury due to surprise from electrical shock. Resistance to arcing means that the Pinner applicators continuously supply static charge. This feature makes them easier and safer to set up and use. The Pinner also produces superior bonding compared to less sophisticated applicators. The Pinner applicators are also available in a non-current limited version for less sensitive areas.



SIMCO offers a broad selection of charging applicators including high temperature, resistor coupled and non-resistor coupled.

Typical uses include the following:

Converting: Edge pinning on cast film lines

Packaging: Over wrap and heat shrink packaging

Printing: Card insertion on saddle stitcher and perfect bound





Features and Benefits:

• Current limited design for operator and equipment protection

• Arc condition sensing and instantaneous intervention resulting in uninterrupted pinning action

• Minimized EMI and RFI generation, preventing disruption of sensitive control

• Optional manual adjust gooseneck with easy lock/release feature and insulative brackets

• Replaceable pins to ensure maximum pinning performance

• Rated for use in temperatures to 500°F

• Designed and tested as an integral component of Simco-Ion electrostatic charging systems





Specifications:

	PINNER 5-POINT	LINEAR PINNER
Profile	7 in x 3/4 in diameter	4.75 in x 3/4 in diameter
Points	5 fixed	4 replaceable
Temp. Rating	500°F /260°C	221°F /105°C
Power Supply	30 kV	30 kV
Cable	10 ft, not removable	10 ft, not removable
Resistor Limited	Yes	Yes
	PINNER CLAW	MULTI-POINT
Profile	8.5 in x 0.75 in	3.5 in x 1.125 in diameter
Points	3 replaceable	6 fixed
Temp. Rating	500°F/260°C	221°F/105°C
Power Supply	30 kV	30 kV
Cable	10 ft, not removable	10 ft, not removable
Resistor Limited	Yes	No





Extras:

	Pinner 5-Point	Linear PINNER	Pinner Claw	Multi-Point
Part Number	ICMP501	ICMPL01	ICMPC01	ICMP001
Profile	7″x3/4″ dia.	4.75″x1.5″x0.75”	8.5″x0.75″ dia.	3.5″x1.125″ dia.
Points	5 Fixed	4	3 Removable	6 Fixed
Temp. Rating	500° F/260° C	500° F/260° C	500° F/260° C	221° F/105° C
Power Supply	30 kV/50 kV	30 kV/50 kV	30 kV/50 kV	30 kV
Cable	10 ft, fixed	10 ft, fixed	10 ft, fixed	10 ft, fixed
Resistor Limited	Yes	Yes	Yes	No







DOWNLOADS:

Pinner Charging Applicators Data Sheet

Pinner Charging Applicators User Manual

Linear Pinner User Manual

Charging Brochure

Charging Fundamentals Application Note











Please call us for pricing information or any application questions you may have.
